Overview
description

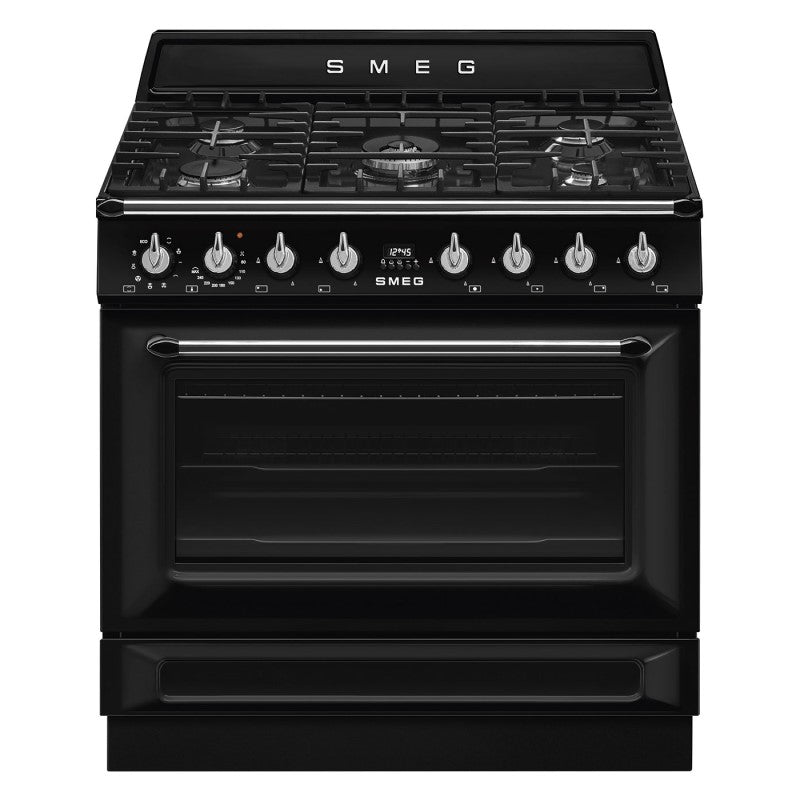

This freestanding cooker merges professional-grade performance with sophisticated design, creating a stunning focal point for any kitchen. The spacious oven, with five shelf positions and multiple cooking functions—from classic baking to fan-forced convection and grilling—empowers limitless culinary possibilities. Equipped with True Convection technology, it delivers a consistent, circular flow of heat, ensuring even cooking results across every shelf and dish.
specifications
-
BrandSmeg
-
IPN835126
-
ModelTRA90GMBL
-
Manufacturer's Warranty5 Years
-
Size90cm
-
Width900.0
-
Height910.0
-
Depth600 mm
-
Product FamilyCooker
-
Cooker size90x60 cm
-
Cooker configurationDual fuel
-
Hob typeGas
-
Hob energy typeGas
-
N. of ovens1
-
Type of main ovenThermoseal
-
Installation positioning of the applianceFree-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
-
Cleaning systemVapour Clean
-
ColourBlack
-
DesignVictoria
-
FinishingBlack
-
AestheticVictoria
-
Command panel finishEnamelled metal
-
MaterialEnamelled
-
UpstandYes
-
Hob colourBlack enamel
-
Type of pan standsCast Iron
-
Type of control settingControl knobs
-
Control knobsSmeg Victoria
-
Controls colourStainless steel
-
No. of controls8
-
Displayelectronic 5 buttons
-
DoorWith frame
-
Glass typeBlack
-
HandleSmeg Victoria
-
Handle ColourPolished chrome
-
Storage compartmentPush pull
-
FeetNone
-
PlinthBlack
-
Defrost by timeWith this function the time of thawing of foods are determined automatically
-
Upper and lower element onlyA traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc.
-
Fan with upper and lower elementsThe elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods
-
CirculaireThe combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food
-
ECOThe combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food
-
Half grillFor rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities
-
Grill elementUsing of grill gives excellent results when cooking meat of medium and small portions, especially when combined with a rotisserie (where possible). Also ideal for cooking sausages and bacon
-
Fan with grill elementThe fan reduces the fierce heat from the grill, providing an excellent method of grilling various foods, chops, steaks, sausages etc. giving even browning and heat distribution, without drying out the food. The top two levels recommended for use, and the lower part of the oven can be used to keep items warm at the same time, an excellent facility when cooking a grilled breakfast. Half grill (centre portion only) is ideal for small quantities of food
-
Lower heating element onlyThis function is ideal for foods that require extra base temperature without browning, e.g. pastry dishes, pizza. Also suitable for slow cooking of stews and casseroles
-
CircogasIn gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning
-
Vapour Cleana simple cleaning function using steam to loosen deposits in the oven cavity
-
TimerYes
-
End of cooking acoustic alarmYes
-
Minimum Temperature50 °C
-
Maximum temperature260 °C
-
Total no. of cook zones5
-
1st zone positionFront left
-
2nd zone positionRear left
-
3rd zone positionCentral
-
4th zone positionRear right
-
5th zone positionFront right
-
1st zone typeGas - Rapid
-
2nd zone typeGas - Semi Rapid
-
3rd zone typeGas - 2UR (dual)
-
4th zone typeGas - Semi Rapid
-
5th zone typeGas - AUX
-
1st zone power2.90 kW
-
2nd zone power1.80 kW
-
3rd zone power5.00 kW
-
4th zone power1.80 kW
-
5th zone power1.00 kW
-
Type of gas burnersStandard
-
Burner capsMatt black enamelled
-
Automatic electronic ignitionYes
-
Gas safety valvesYes
-
Net volume of the cavity115 l
-
Gross volume, 1st cavity129 l
-
Cavity materialEver Clean enamel
-
No. of shelves5
-
Type of shelvesMetal racks
-
No. of lights2
-
Light typeHalogen
-
Light Power40 W
-
Fan number2
-
Cooking time settingStart and Stop
-
Door openingFlap down
-
Light when oven door is openYes
-
Removable doorYes
-
Full glass inner doorYes
-
Removable inner doorYes
-
Total no. of door glasses3
-
No.of thermo-reflective door glasses2
-
Safety ThermostatYes
-
Cooling systemTangential
-
Grill typeElectric
-
Grill elememt1700 W
-
Large grill - Power2900 W
-
Lower heating element power1700 W
-
Upper heating element - Power1200 W
-
Circular heating element - Power2 x 1550 W
-
Soft Close systemYes
-
Temperature controlElectro-mechanical
-
Electrical connection rating3200 W
-
Current14 A
-
Voltage220-240 V
-
Frequency50 Hz
-
Power supply cable length120 cm
-
Type of electric cable installedYes, Single phase
-
Gas connection rating (W)12300 W
-
Gas TypeG20 Natural gas
- 129L oven capacity
- 5 burners
- Thermoseal
- Vapour Clean
- Ultra rapid burners
- Automatic opening
- All glass inner door
- Triple glazed doors
- Enamel interior
- Soft close
- Safety Thermostat
- Electro-mechanical Temperature control
- Inner door glass can be removed
- Two opposing side lights
