Overview
description

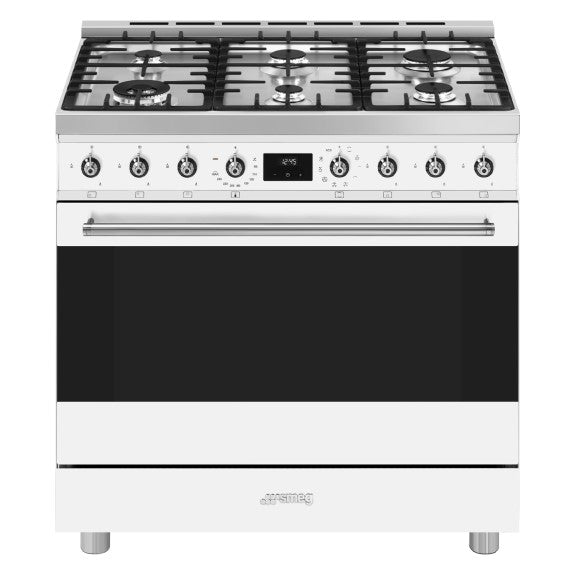

Experience versatile cooking with Smeg’s 90cm Freestanding Dual Fuel Oven/Stove, showcasing Smeg’s iconic design. The expansive 90cm cooktop features six gas burners, including a central high-powered burner for rapid heating. Use the Smeg wok stand for delicious stir-fries that sizzle with flavor. Each burner is equipped with a flame failure safety device, ensuring safety by automatically cutting off the gas supply if the flame goes out.
specifications
-
BrandSmeg
-
IPN831756
-
ModelCS9GMWHA2
-
Manufacturer's Warranty2 Years
-

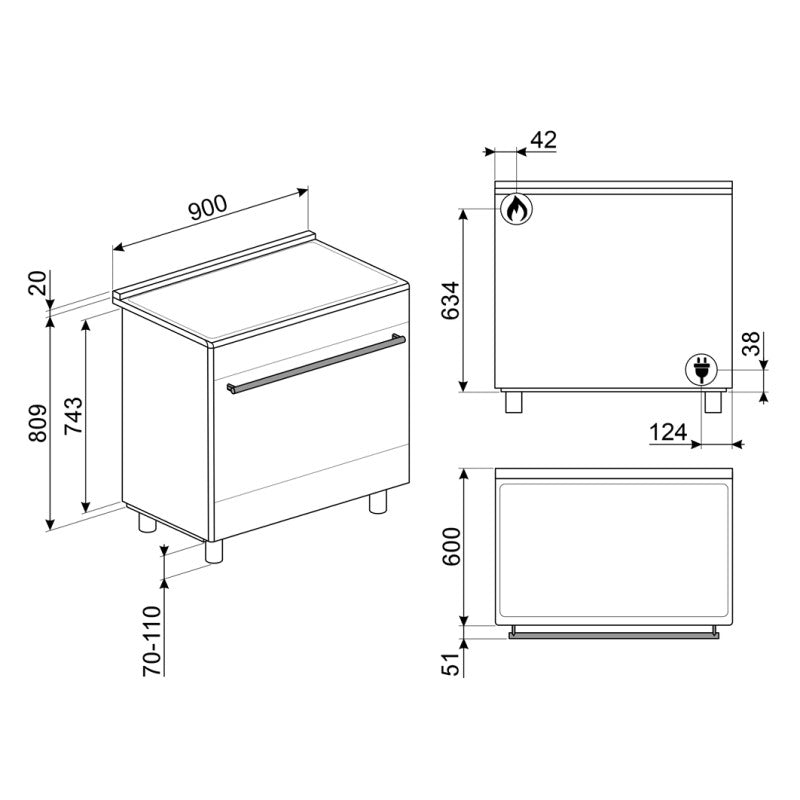

Size90cm
-
Width900.0
-
Height900.0
-
Depth600 mm
-
Colour/FinishWHITE
-
SIZE (CM)90 CM
-
Cooktop Burners6
-
Fuel TypeDUAL
-
Product FamilyCooker
-
Cooker size90x60 cm
-
Hob energy typeGas
-
N. of ovens1
-
Hob typeGas
-
Type of main ovenThermoseal
-
Cleaning systemVapour Clean
-
ColourWhite
-
AestheticClassic
-
DesignSquare design
-
SerieSinfonia
-
MaterialStainless steel
-
DoorWith 2 horizontal strips
-
Command panel finishEnamelled metal
-
Hob colourStainless steel
-
HandleSmeg Classic
-
Controls colourStainless steel
-
UpstandYes
-
DisplayTouch
-
Type of pan standsCast Iron
-
Glass typeEclypse
-
Handle ColourBrushed stainless steel
-
Control knobsSmeg Classic
-
No. of controls8
-
FeetSilver
-
PlinthStainless steel
-
Storage compartmentDoor
-
StaticUpper and lower element only - a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc.
-
Fan assistedFan with upper and lower elements - The elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods.
-
CirculaireThe combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food.
-
EcoThe combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food.
-
Small grillFor rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities.
-
Large grillUsing of grill gives excellent results when cooking meat of medium and small portions, especially when combined with a rotisserie (where possible). Also ideal for cooking sausages and bacon.
-
Fan grillThe fan reduces the fierce heat from the grill, providing an excellent method of grilling various foods, chops, steaks, sausages etc. giving even browning and heat distribution, without drying out the food. The top two levels recommended for use, and the lower part of the oven can be used to keep items warm at the same time, an excellent facility when cooking a grilled breakfast. Half grill (centre portion only) is ideal for small quantities of food.
-
BaseLower heating element only - This function is ideal for foods that require extra base temperature without browning, e.g. pastry dishes, pizza. Also suitable for slow cooking of stews and casseroles.
-
Fan assisted bottomIn gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning.
-
Cleaning functionsVapour Clean - a simple cleaning function using steam to loosen deposits in the oven cavity.
-
Other FunctionsWith the switch on this symbol, no heating is possible even if the thermostat is turned.
-
TimerYes
-
End of cooking acoustic alarmYes
-
Minimum Temperature50 °C
-
Maximum temperature260 °C
-
Total no. of cook zones6
-
1st zone positionFront left
-
2nd zone positionRear left
-
3rd zone positionFront centre
-
4th zone positionRear centre
-
5th zone positionRear right
-
6th zone positionFront right
-
1st zone typeGas - UR
-
2nd zone typeGas - AUX
-
3rd zone typeGas - AUX
-
4th zone typeGas - Semi Rapid
-
5th zone typeGas - Rapid
-
6th zone typeGas - Semi Rapid
-
1st zone power4.40 kW
-
2nd zone power1.05 kW
-
3rd zone power1.05 kW
-
4th zone power2.10 kW
-
5th zone power3.30 kW
-
6th zone power2.10 kW
-
Type of gas burnersStandard
-
Burner capsMatt black enamelled
-
Automatic electronic ignitionYes
-
Gas safety valvesYes
-
Net volume of the cavity115L
-
Gross volume, 1st cavity129L
-
Cavity materialEver Clean enamel
-
No. of shelves5
-
Type of shelvesMetal racks
-
No. of lights2
-
Light typeHalogen
-
Light Power40 W
-
Fan number2
-
Cooking time settingStart and Stop
-
Door openingFlap down
-
Light when oven door is openYes
-
Removable doorYes
-
Full glass inner doorYes
-
Removable inner doorYes
-
Total no. of door glasses3
-
No.of thermo-reflective door glasses2
-
Safety ThermostatYes
-
Cooling systemTangential
-
Grill typeElectric
-
Grill element1700 W
-
Large grill - Power2900 W
-
Lower heating element power1700 W
-
Upper heating element - Power1200 W
-
Circular heating element - Power2 x 1550 W
-
Temperature controlElectro-mechanical
-
Electrical connection rating3200 W
-
Current14 A
-
Voltage220-240 V
-
Voltage 2 (V)220/240 V
-
Frequency50/60 Hz
-
Power supply cable length120 cm
-
Type of electric cable installedYes, Single phase
-
Gas connection rating (W)13800 W
-
Gas TypeG20 Natural gas
- 115L thermoseal oven
- Vapour clean
- 5 oven shelves
- Electric grill
- Electro-mechanical temperature control
- Halogen lights
- 6 gas burners
- Matt black enamelled burner caps
- Automatic electronic ignition
- Gas safety valves
