Collapsible content
Overview
description

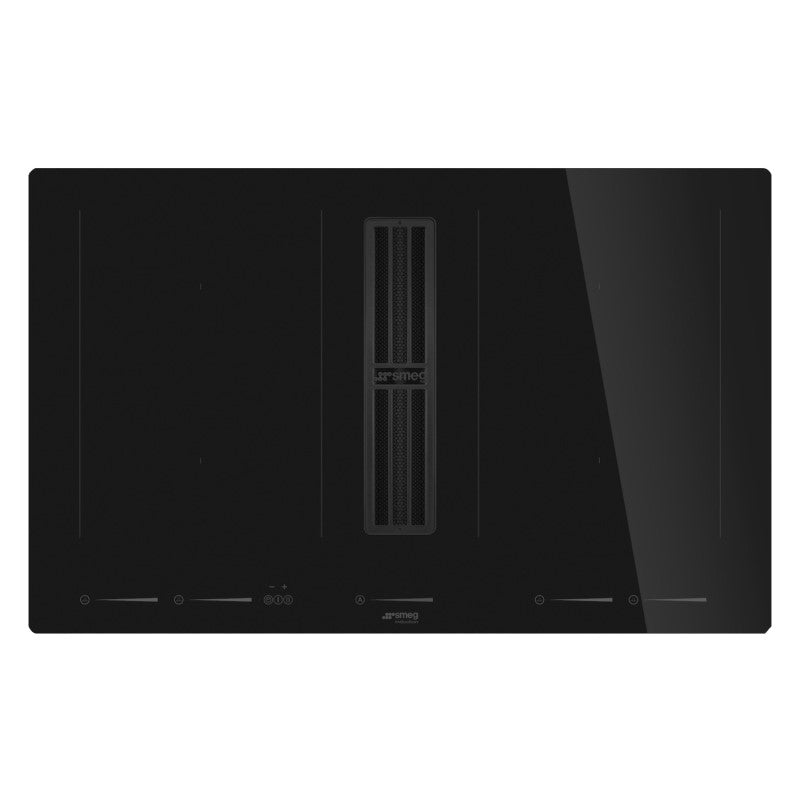

The Smeg 83cm Linea Integrated Induction Cooktop in Pure Black is a masterclass in seamless design and intelligent functionality, combining high-performance cooking with built-in extraction. Its automatic extraction function, powered by an innovative brushless motor, efficiently removes steam and odours while operating quietly and with minimal energy use. The redesigned extraction system is housed beneath a striking flush black stainless steel grid, blending effortlessly into the cooktop for a streamlined, minimalist appearance. With multizone flexibility, the surface adapts to different pan sizes and placements, while automatic pan detection and a powerful boost function ensure rapid, responsive heat when you need it most. Touch controls offer precise, intuitive operation, and the Advanced Eco Logic system helps minimise energy consumption for a more sustainable cooking experience. Designed to sit flush within your benchtop, this cooktop is as beautiful as it is practical, making it an exceptional choice for modern kitchens where form and function go hand in hand.
specifications
-
BrandSmeg
-
IPN869066
-
ModelHOBD682D2
-
Manufacturer's Warranty5 Years
-
Size83CM
-
Width830.0
-
Height210.0
-
Depth520 mm
-
Colour/FinishBLACK
-
ColourBlack
-
FinishingGlass
-
AestheticUniversale
-
Glass typeCeramic
-
MaterialGlass
-
Type of control settingMulti Slider
-
Control knob positionFront
-
SliderWhite
-
Glass edgeStraight edge
-
Pan standsStainless steel
-
Serigraphy colourGrey
-
Total no. of cook zones4
-
No. of induction cook zones4
-
Time-setting optionsAutomatic Shutdown
-
No. of cooking zones with booster4
-
No. of Flexible zones2
-
Main on/off switchYes
-
Power levels9
-
Product FamilyHob
-
Dimensions83 cm
-
TypeInduction with integrated hood
-
ExtractionExtraction
-
Built-in typeUltra-low profile or Fully Flushed
-
Power supplyElectric
-
Electronic controlYes
-
Automatic setting according to pan dimensionYes
-
Permanent Automatic Pot Detection with indication of the relative controlYes
-
pan detectionYes, min 9 cm
-
Automatic switch off when overflowYes
-
Residual heat indicatorYes
-
Protection against accidental start upYes
-
Multizone OptionYes
-
Flexible Zone TypeMultiZone
-
End cooking timer4
-
Pause optionYes
-
Minute minder1
-
End of cooking alarmYes
-
Residual time indicatorYes
-
Control Lock / Child SafetyYes
-
Keep warm automatic functionYes
-
Quick startYes
-
Simmering FunctionYes
-
Melting/Low temperature cooking functionYes
-
Rapid level selectionYes
-
1st zone positionFront-left
-
2nd zone positionRear-left
-
3rd zone positionRear-right
-
4th zone positionFront-right
-
1st zone typeInduction - Multizone
-
2nd zone typeInduction - Multizone
-
3rd zone typeInduction - Multizone
-
4th zone tipeInduction - Multizone
-
1st zone dimensions21.0x19.0 cm
-
2nd zone dimensions21.0x19.0 cm
-
3rd zone dimensions21.0x19.0 cm
-
4th zone dimensions21.0x19.0 cm
-
Left Multizone dimension46.0x21.0 cm
-
Right Multizone dimension46.0x21.0 cm
-
1st zone power2.10 kW
-
2nd zone power2.10 kW
-
3rd zone power2.10 kW
-
4th zone power2.10 kW
-
1st zone booster power3.00 kW
-
2nd zone booster power3.00 kW
-
3rd zone booster power3.00 kW
-
4th zone booster power3.00 kW
-
Booster power left Multizone3.70 kW
-
Booster power right Multizone3.70 kW
-
Electrical connection rating (W)7620 W
-
Current33 A
-
Voltage (V)220-240 V
-
Voltage 2 (V)380-415 V
-
Frequency (Hz)50/60 Hz
-
Type of electric cable suppliedYes, Single and Double phase
-
Power supply cable length120 cm
-
Power Consumption in Off mode (Po)0.49 W
-
Hood control settingTouch Capacitive
-
Led colorBianco
-
DisplayYes
-
No. of speeds8
-
Intensive speed2
-
Auto-VentYes
-
Free outlet maximum capacity650 m³/h
-
Motor power220 W
-
No. of filters1
-
Anti-grease filtersInox
-
Charcoal filters includedYes, regenerable
-
Filter replacement indicatorYes
-
Extraction rate IEC 61591230 m³/h
-
Noise level IEC 60704-2-1349 dBA
-
Power40 W
-
Extraction rate IEC 61591270 m³/h
-
Noise level IEC 60704-2-1351 dBA
-
Power50 W
-
Extraction rate IEC 61591340 m³/h
-
Noise level IEC 60704-2-1355 dBA
-
Power90 W
-
Extraction rate IEC 61591370 m³/h
-
Noise level IEC 60704-2-1360 dBA
-
Power90 W
-
Extraction rate IEC 61591400 m³/h
-
Noise level IEC 60704-2-1362 dBA
-
Pressure500 Pa
-
Power100 W
-
Extraction rate IEC 61591435 m³/h
-
Noise level IEC 60704-2-1363 dBA
-
Pressure550 Pa
-
Power120 W
-
Extraction rate IEC 61591460 m³/h
-
Noise level IEC 60704-2-1365 dBA
-
Pressure600 Pa
-
Power150 W
-
Extraction rate IEC 61591500 m³/h
-
Noise level IEC 60704-2-1368 dBA
-
Pressure620 Pa
-
Power170 W
-
Extraction rate (IEC 61591)540 m³/h
-
Noise level IEC 60704-2-1370 dBA
-
Power180 W
-
Extraction rate IEC 61591630 m³/h
-
Noise level IEC 60704-2-1373 dBA
-
Pressure630 Pa
-
Power220 W
-
Energy efficiency class ( EEC)A+
-
Fluid Dynamic Efficiency class (FDEC)A
-
Grease Filtering Efficiency Class (GFEC)B
-
Fluid Dynamic Efficiency (FDE)32.10
-
Lighting Efficiency (LE)0.0 lux/W
-
Grease Filtering Efficiency (GFE)85.1 %
-
Air flow at minimum speed (Qmin)230 m³/h
-
Air flow at maximum speed (Qmax)500 m³/h
-
Air flow at boost speed (Qboost)630 m³/h
-
Airbourne acoustical A-weighted sound Power Emission at minimum speed (SPEmin)49 dBA
-
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax)68 dBA
-
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost)73 dBA
-
Time increase factor (F)0.8
-
Energy Efficiency Index44.2
-
Measured air flow rate at best efficiency point (Qbep)359 m³/h
-
Measured air pressure at best efficiency point (Pbep)549 Pa
-
Measured electric power input at best efficiency point (Wbep)139 W
-
Sound power level at highest setting (Lwa)68 dBA
-
Frequenza cappa50-60 Hz
- 4 cooking zones
- 2 flexible zones
- 9 power levels
- Multi slider control
- Automatic shutdown
- Stainless steel stands
- Automatic pot detection
- Automatic switch off
- Residual heat indicator
- Protection against accidental start up
- 650 m³/h integrated hood
- 8 speeds
- Auto-vent
- 220W motor
- Anti-grease filters
