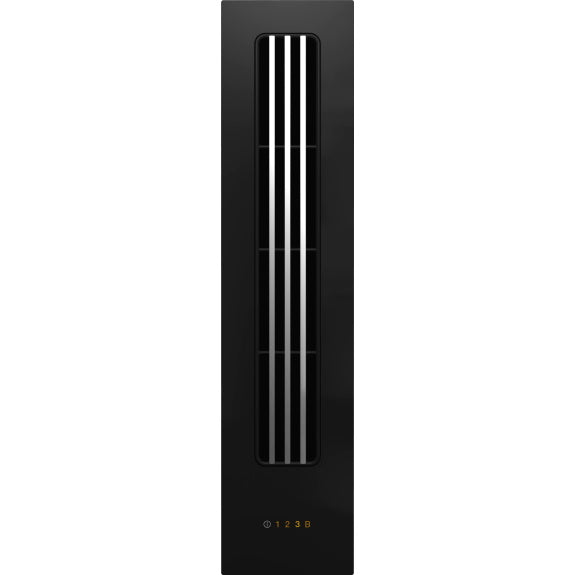

Miele 120cm Smartline Element Downdraft Extractor - Black
Model
CSDA7001
IPN
823660
Shipped direct from supplier
This product ships from the manufacturer. They will contact you directly to organise delivery of your order.
Miele 120cm Smartline Element Downdraft Extractor - Black
Model
CSDA7001
IPN
823660
Shipped direct from supplier
This product ships from the manufacturer. They will contact you directly to organise delivery of your order.
Regular price
$3,599
Regular price
Before
$0
Sale price
Unit price
per
Now
$3,599
PHONE SALES 1300 863 749
Delivered direct from supplier
Check Availability
Enter your location in the field below to get delivery estimates and stock information for your local store.
Promotions For This Product
Bundle & Save up to 10% on Miele Appliance Packages
Bundle & save up to 10% on select Miele appliances. 1 Oct - 11 Nov 2026. T&C's apply.
Offer ends Wed, Nov 11, 2026
Collapsible content
Overview
Delivery & Returns
Payment Options
Reviews
Overview
description
Introducing the Miele CSDA7001, a culinary essential redefining kitchen safety and convenience. Its flame guard and safety switch-off features ensure worry-free cooking, while the digital power level display guarantees precise control. The quick and intuitive design simplifies operation, complemented by a 10-ply stainless-steel grease filter for unparalleled cleanliness. Powered by a robust eco motor, it not only delivers powerful extraction but also operates with remarkable energy efficiency and quietness. Compact in size (168 x 120 x 520 mm), this rangehood seamlessly integrates into your kitchen, making a bold statement in both form and function. Elevate your cooking experience with Miele's commitment to excellence.
specifications
-
BrandMiele
-
IPN823660
-
ModelCSDA7001
-
Manufacturer's Warranty2 Years
-
Size120CM
-
Width120.0
-
Height168.0
-
Depth520 mm
-
Colour/FinishBLACK
-
SIZE (CM)120 CM
-
Downdraft extractorYes
-
Flush installationYes
-
Frameless – surface-mountedYes
-
Type of air guideConvertible
-
Recirculation conversion kit (order separately)DUU 1000-2
-
Operation via sensor controlsSmart Select
-
Digital power level displayYes
-
Display colourYellow
-
Run-on time 5 min.Yes
-
Energy efficiency class (A+++ to D)A++
-
ECO motorYes
-
Easy to clean ceramic glassYes
-
CleanCoverYes
-
Number of dishwasher safe stainless steel grease filters1
-
Air throughput in Level 1 (m³/h) according to EN 61591150
-
Air throughput in Level 2 (m³/h) according to EN 61591290
-
Air throughput in Level 3 (m³/h) according to EN 61591440
-
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-358
-
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1329
-
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1343
-
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1351
-
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1355
-
Air throughput in Level 1 (m³/h) according to EN 61591100
-
Air throughput in Level 2 (m³/h) according to EN 61591235
-
Air throughput in Level 3 (m³/h) according to EN 61591380
-
Air throughput in Booster level (m³/h) according to EN 61591460
-
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-349
-
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-363
-
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-373
-
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-378
-
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1334
-
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1349
-
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1358
-
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1363
-
Safety switch-offYes
-
FlameGuardYes
-
Casing height incl. connection box in mm168
-
Cut-out dimensions in mm (width) for onset installation100
-
Cut-out dimensions in mm (depth) for onset installation500
-
Inner cut-out dimensions in mm (width) for flush-fit installation100
-
Inner cut-out dimensions in mm (depth) for flush-fit installation500
-
Outer cut-out dimensions in mm (width) for flush-fit installation124
-
Outer cut-out dimensions in mm (depth) for flush-fit installation524
-
Total rated load in kW0.2
-
Voltage in V230
-
Fuse rating in A10
-
Connection cable length in m2
-
Plinth fan with vent connectionYes
-
Extraction connection at side and rearYes
-
Dimensions of the exhaust ducting connector in mm (width)222
-
Dimensions of the exhaust ducting connector in mm (depth)89
-
Mains cable with plugYes
-
Ducting system to the plinth fanYes
- Intuitive and quick selection
- Elegant design
- Seamlessly integrates with any SmartLine element
- Efficient filtration
- Energy-efficient and quiet
